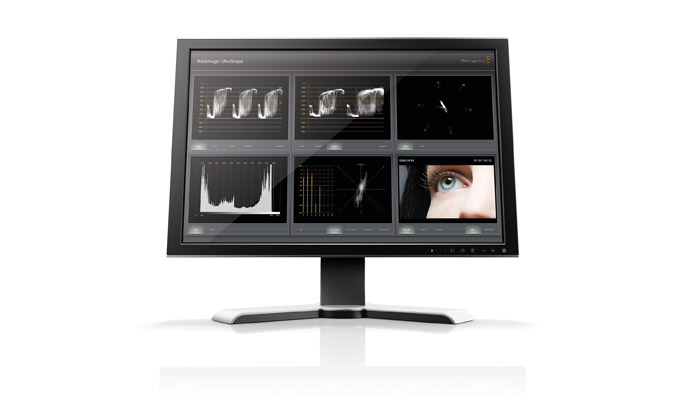

Blackmagic UltraScope is the first broadcast accurate PC-based scope in a user-friendly design! UltraScope is six independent waveform monitors combined into one!

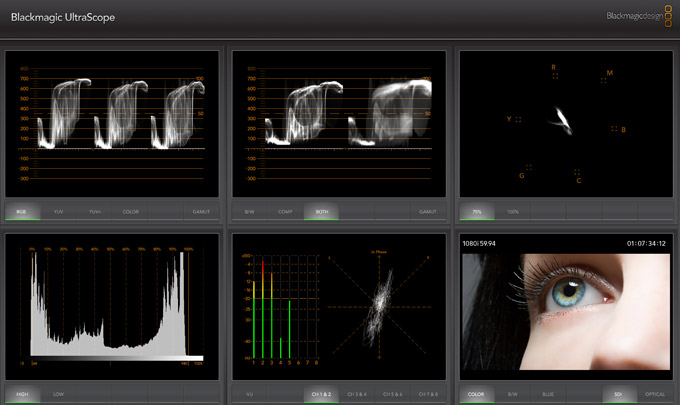

Display all six waveforms simultaneously with Parade, Waveform, Component Vectorscope, Histogram, Picture View and Audio Monitoring in an attractive full screen display. UltraScope automatically detects between SD, HD and 3Gb/s HD-SDI video standards and includes both traditional copper BNC SDI inputs as well as optical fiber SDI inputs. SDI input is available as a relocked SDI loop through on both optical and copper SDI outputs.

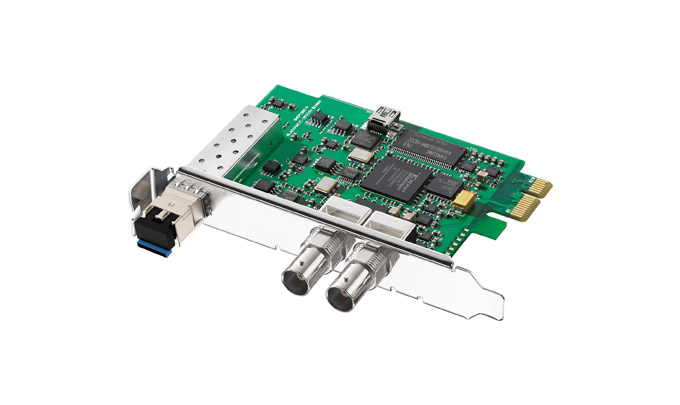

Blackmagic UltraScope is technically accurate which is perfect for master monitoring and quality control tasks. Blackmagic UltraScope is a combination PCI Express card and software package designed to work with a low cost PC and display.

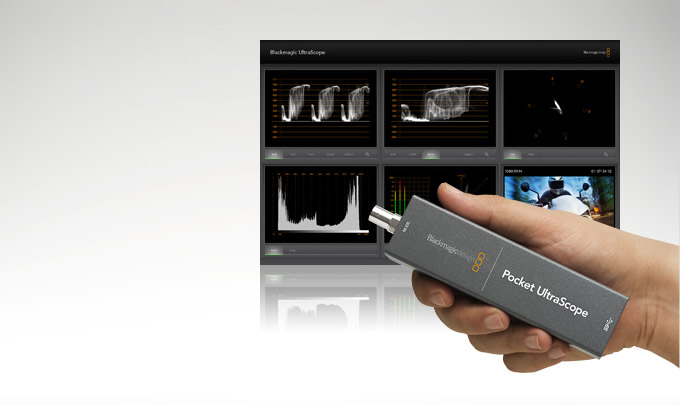

Get all the incredible features of Blackmagic UltraScope on your laptop! Pocket UltraScope includes the same fantastic UltraScope software combined with a miniature pod which converts 3 Gb/s SDI to the computer's USB 3.0 port.

Pocket UltraScope is both compact and portable allowing you to bring accurate waveform monitoring to the most remote locations. Pocket UltraScope automatically detects between SD, HD and 3Gb/s HD-SDI video standards and is powered from the laptop battery via the USB 3.0 port eliminating the need for a power source when on location!

SuperSpeed USB 3.0 is the new USB connection standard for computers which is 10 times faster than regular USB; That's a blistering 4.8 Gb/s, which easily handles the highest quality 10 bit uncompressed 1080HD video. Blackmagic Design USB 3.0 products require either: a) An x58 chipset-based motherboard with on board USB3 or b) An ASUS USB 3 PCIe x4 USB3 expansion card inserted into PCIe slot.

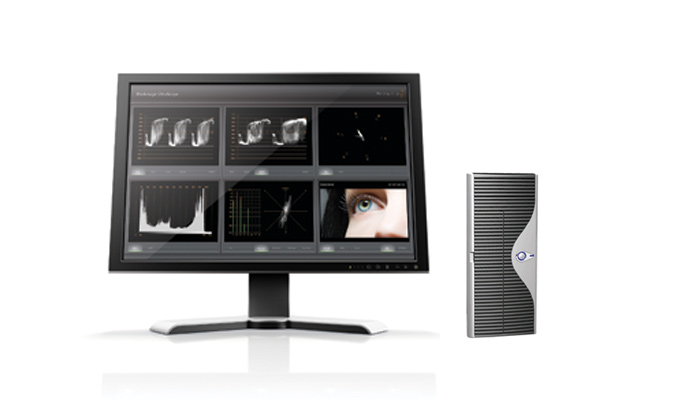

Complete, ready-to-go, turnkey Windows-based UltraScope system with a quality 24" monitor.

Simply plug in and it's ready to start monitoring your signals. UltraScope automatically detects between SD, HD and 3Gb/s HD-SDI video standards and includes both traditional copper BNC SDI inputs as well as optical fiber SDI inputs. SDI input is available as a relocked SDI loop-through on both optical and copper SDI outputs. Blackmagic UltraScope is technically accurate which is perfect for master monitoring and quality control tasks.
